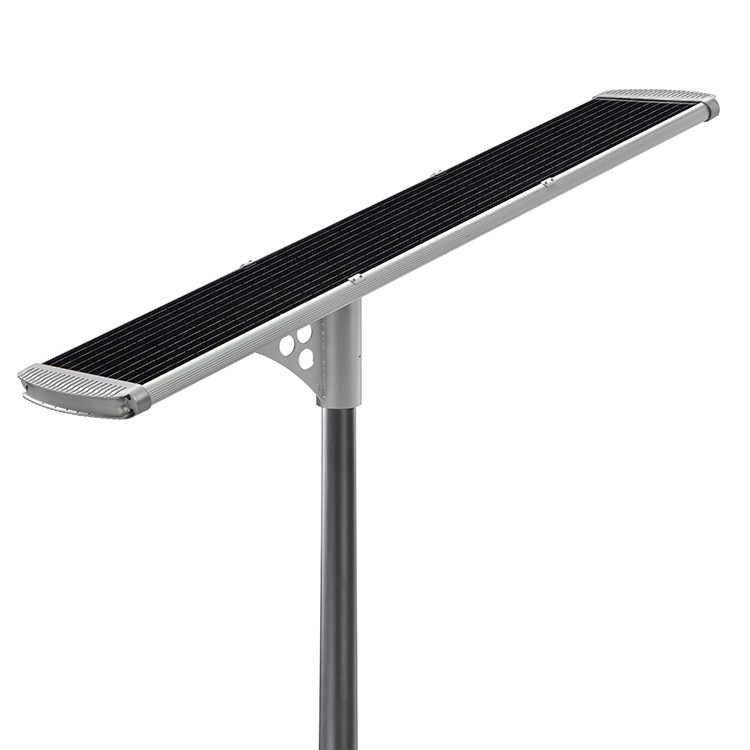

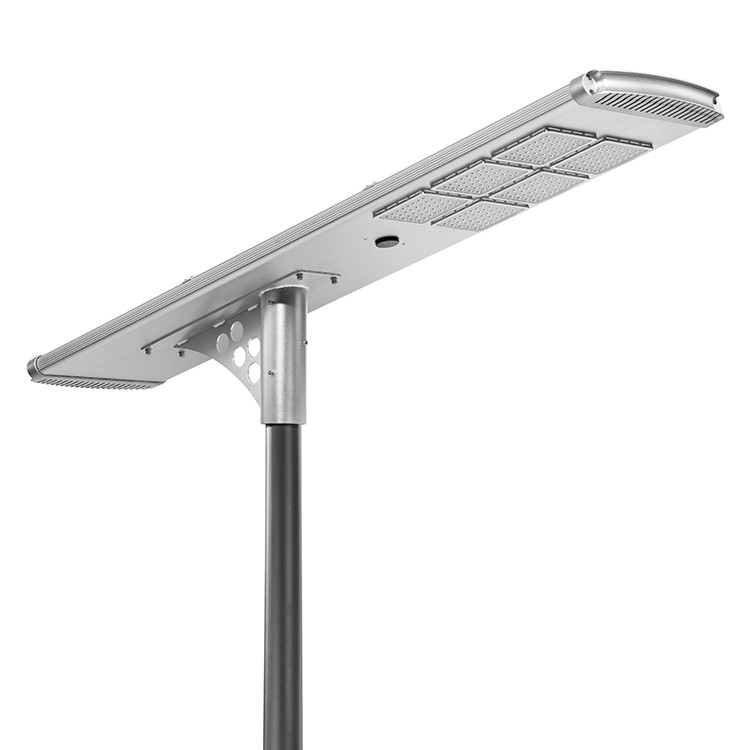

all in one solar street light PAD model 120w

Solar panel

Max power

18V 140W(Imported High Efficiency Monocrystalline Silicon)

Life time

25years

Battery

Type

LifePO4 Battery(12.8V 72AH)

Life time

8-10years

LED Lamp

Max power

12V100W

led chip brand

Bridgelux 3030 High Efficincy LED Chip

lumen (LM)

170LM/W   20400LM

Life time

100000hours

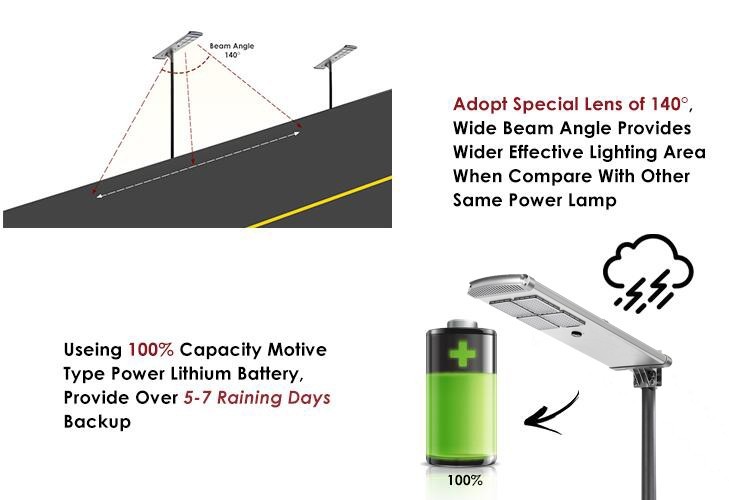

Viewing Angle

140°

LED Lamp

240 PCS

Charge time

by sun

6hours

Discharge time

3 -7Cloudy/Rainy days

working Temperature

range( ℃ )

-25℃—+65℃

colour temperature

range(k)

2700K-6500K(customized)

mounting height

range (m)

7-12M

space between light

range (m)

25-41M

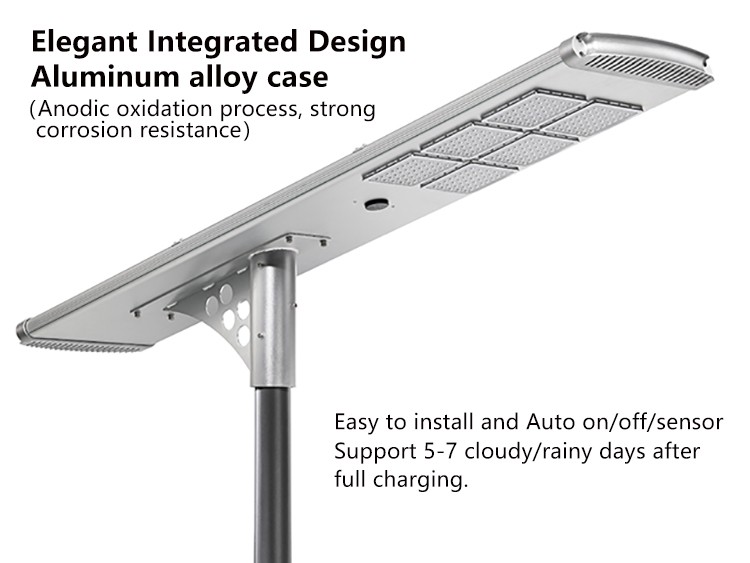

Lamps material of main

aluminium alloy

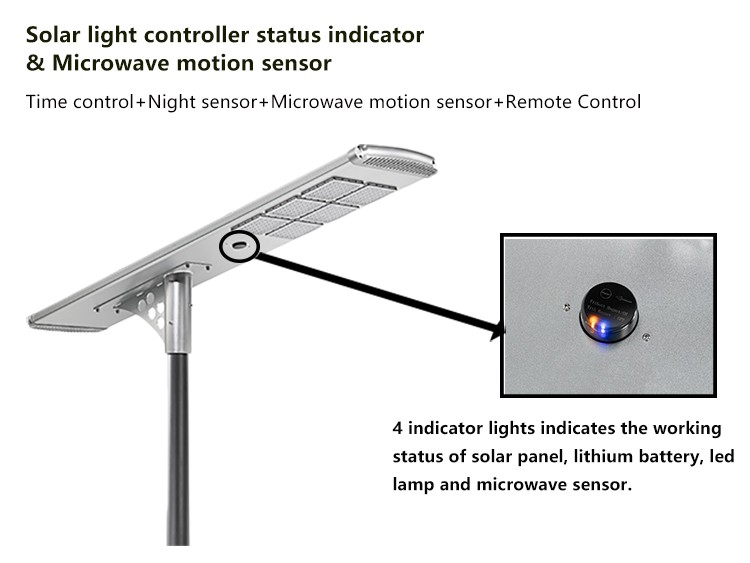

with remote control or not

yes / Night Sensor+Microwave Motion  Sensor

Certificate

CE / ROHS / IP65 / ISO

warranty period

3 years

Packing & Weight

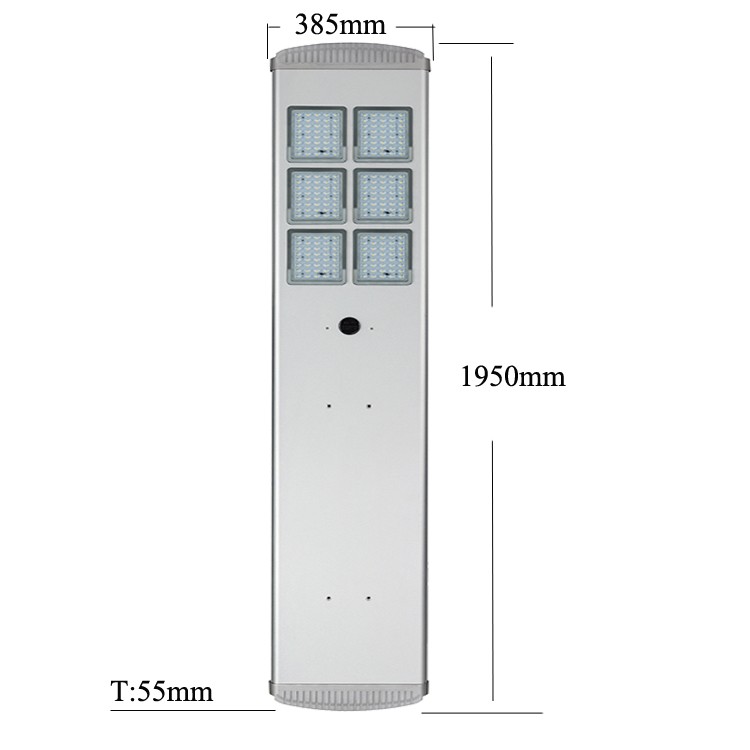

Product size

1950*385*55MM

Net weight

28.5KG

Gross weight

30KG

Packing size

2015*110*460MM

Qty/ctn

1set/ctn

Packing

neutral

Packs Containers

20GP

200sets

40GP

410sets

40HC

480sets
