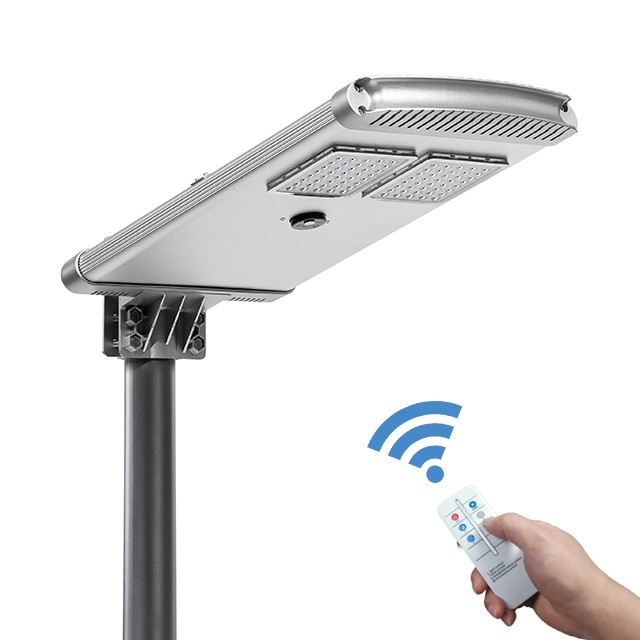

all in one solar street light PAD model 40w

Power: 40w
Solar panel:18V 60W
Lithium battery:12.8V 28AH
Install height: 7m-8m
Material: Aluminum Alloy
Size: 960*385*180MM

EMAIL

integrated solar street light 40W(PAD Plus

Item NO.JKC-PAD40W-M

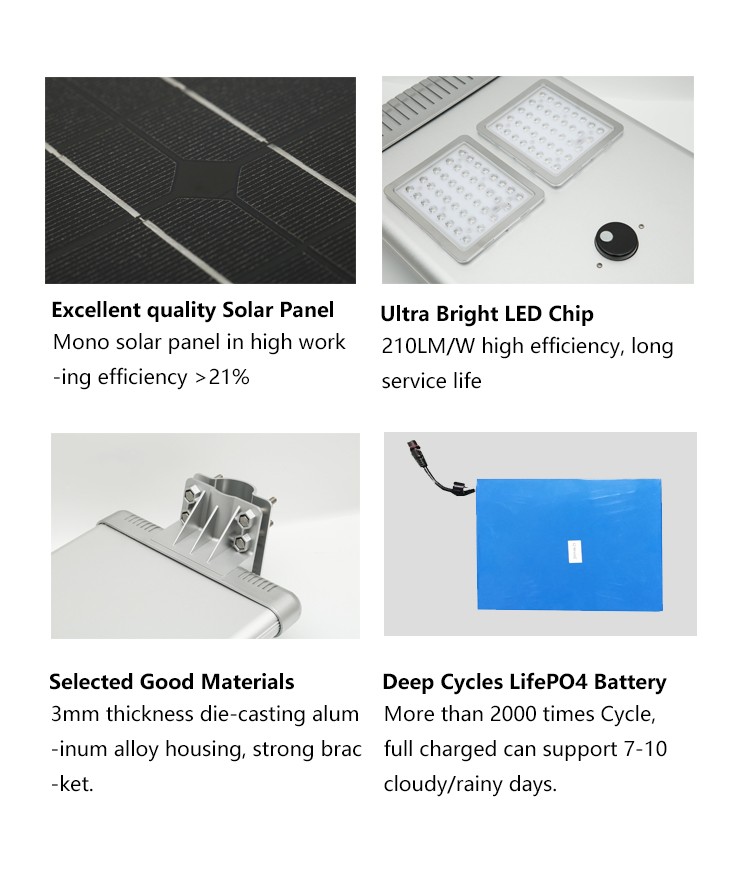

Solar panel

Max power

18V 65W(Imported High Efficiency Monocrystalline Silicon)

Life time

25years

Battery

Type

LifePO4 Battery(12.8V 28AH)

Life time

8-10years

LED Lamp

Max power

12V40W

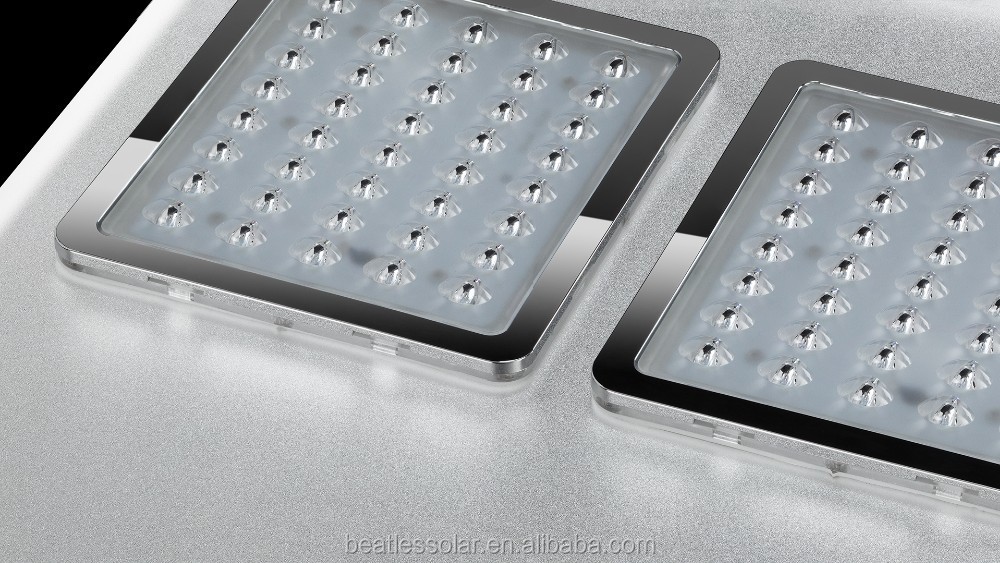

led chip brand

Bridgelux 3030 High Efficincy LED Chip

lumen (LM)

170LM/W   6800LM

Life time

100000hours

Viewing Angle

140°

LED Lamp

80 PCS


Charge time

by sun

6hours

Discharge time

3 -7Cloudy/Rainy days

working Temperature

range(  )

-25—+65

colour temperature

range(k)

2700K-6500K(customized)

mounting height

range (m)

7-8M

space between light

range (m)

23-27M

Lamps material of main

aluminium alloy

with remote control or not

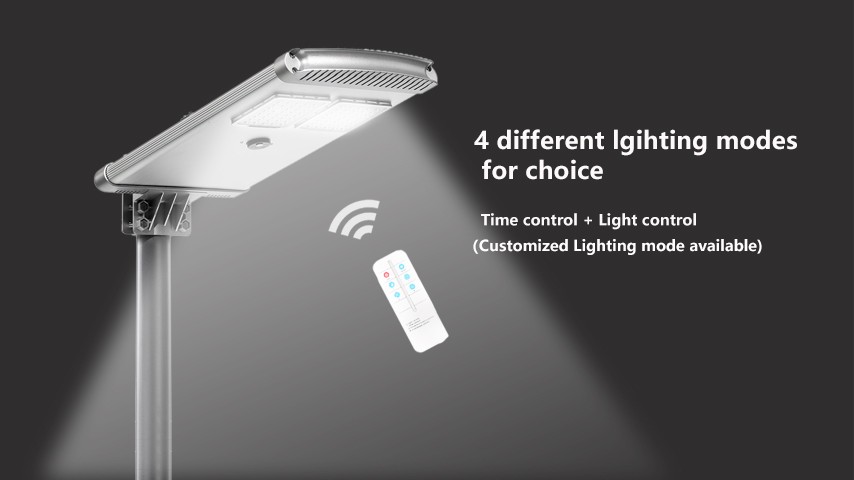

yes / Night Sensor+Microwave Motion  Sensor

Certificate

CE / ROHS / IP65 / ISO

warranty period

3 years

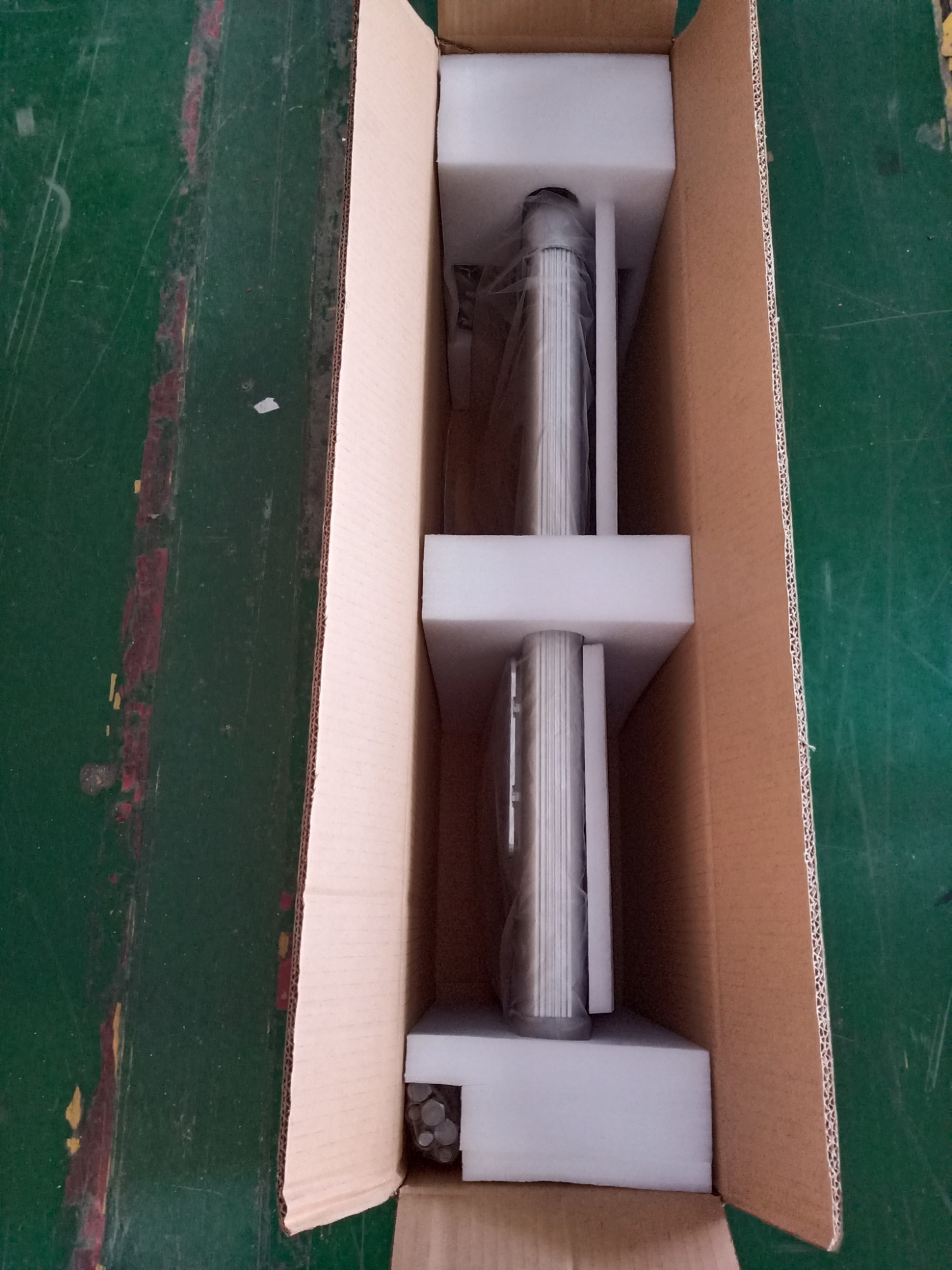

Packing & Weight

Product size

960*385*180MM

Net weight

13KG

Gross weight

14KG

Packing size

1030*450*205MM

Qty/ctn

1set/ctn

Packing

neutral

Packs Containers

20GP

280sets

40GP

570sets

40HC

680sets
