all in one solar street light PAD model 80w

Power: 80w
Solar panel:18V 100W
Lithium battery:12.8V 54AH
Install height: 6m-9m
Material: Aluminum Alloy

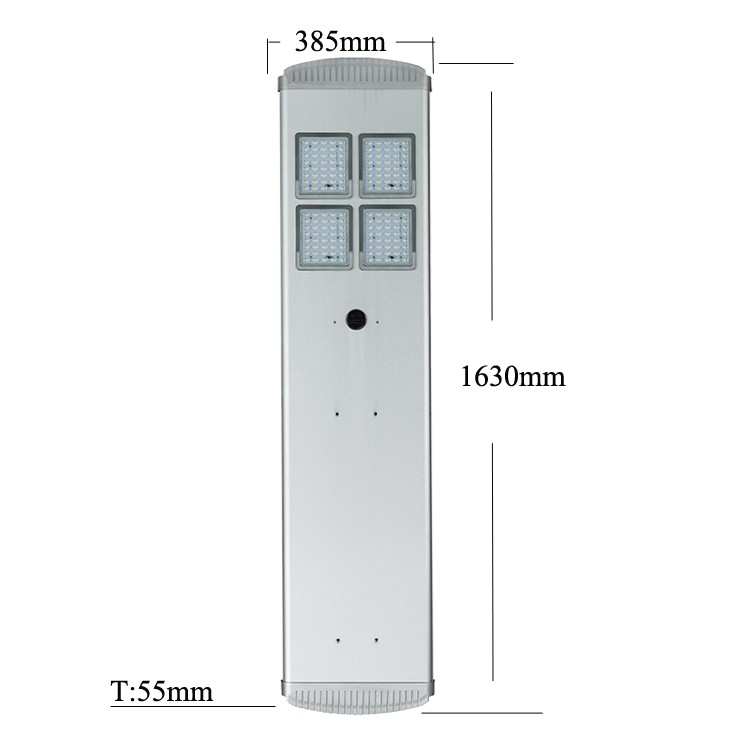

Size: 1630*385*55

EMAIL

integrated solar street light 80W(PAD Plus

Item NO.JKC-PAD80W-M

Solar panel

Max power

18V 100W(Imported High Efficiency Monocrystalline Silicon)

Life time

25years

Battery

Type

LifePO4 Battery(12.8V 54AH)

Life time

8-10years

LED Lamp

Max power

12V80W

led chip brand

Bridgelux 3030 High Efficincy LED Chip

lumen (LM)

170LM/W   13600LM

Life time

100000hours

Viewing Angle

140°

LED Lamp

160 PCS


Charge time

by sun

6hours

Discharge time

3 -7Cloudy/Rainy days

working Temperature

range(  )

-25—+65

colour temperature

range(k)

2700K-6500K(customized)

mounting height

range (m)

6-9M

space between light

range (m)

23-34M

Lamps material of main

aluminium alloy

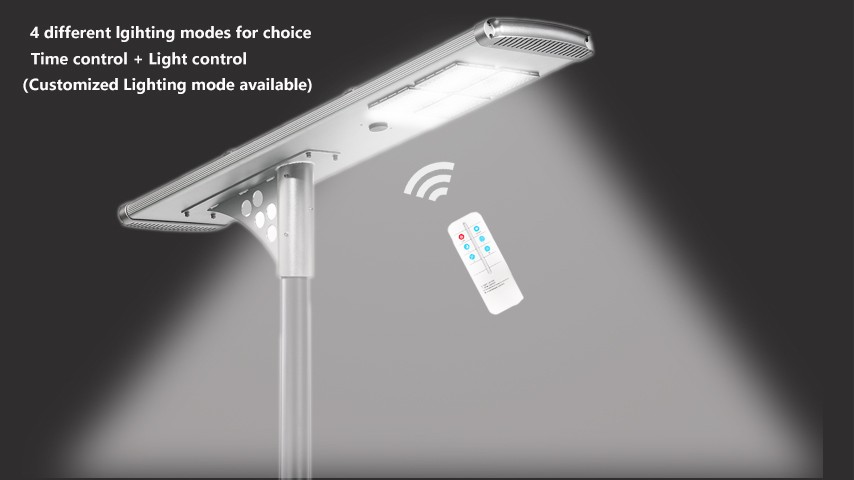

with remote control or not

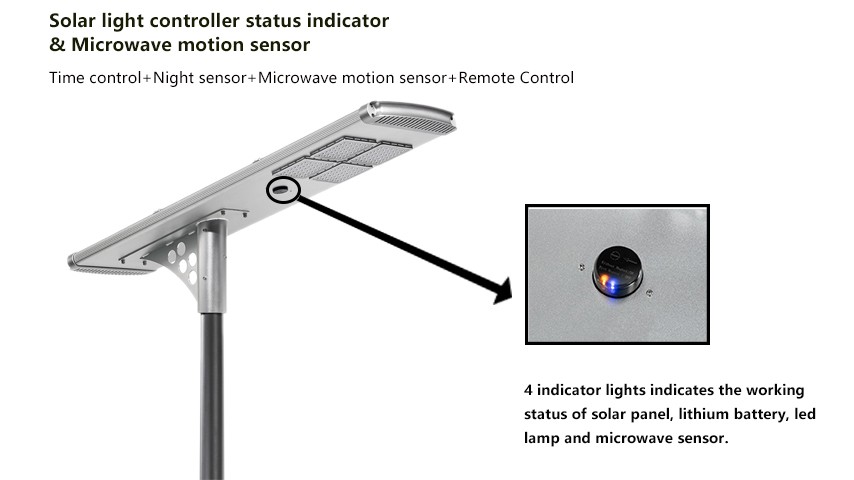

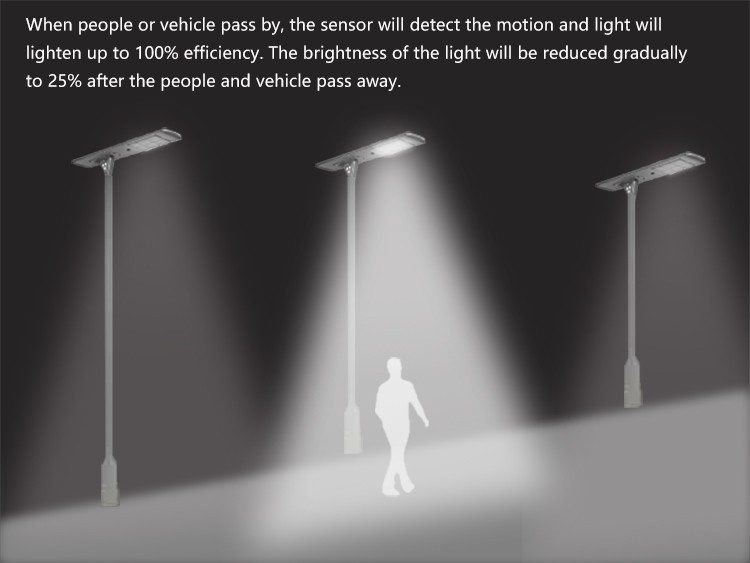

yes / Night Sensor+Microwave Motion  Sensor

Certificate

CE / ROHS / IP65 / ISO

warranty period

3 years

Packing & Weight

Product size

1630*385*55

Net weight

20KG

Gross weight

21KG

Packing size

1695*110*460MM

Qty/ctn

1set/ctn

Packing

neutral

Packs Containers

20GP

230sets

40GP

470sets

40HC

560sets
