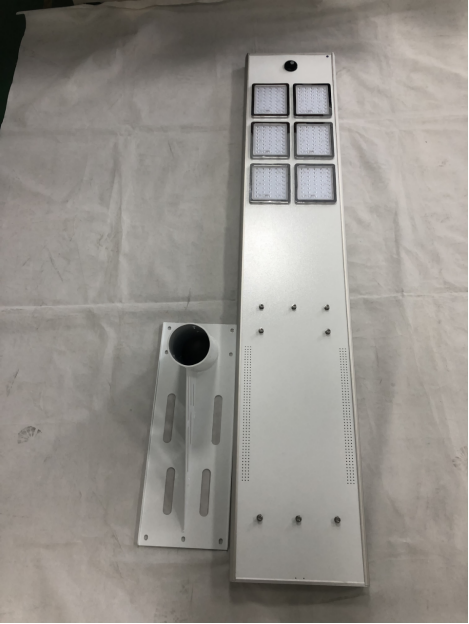

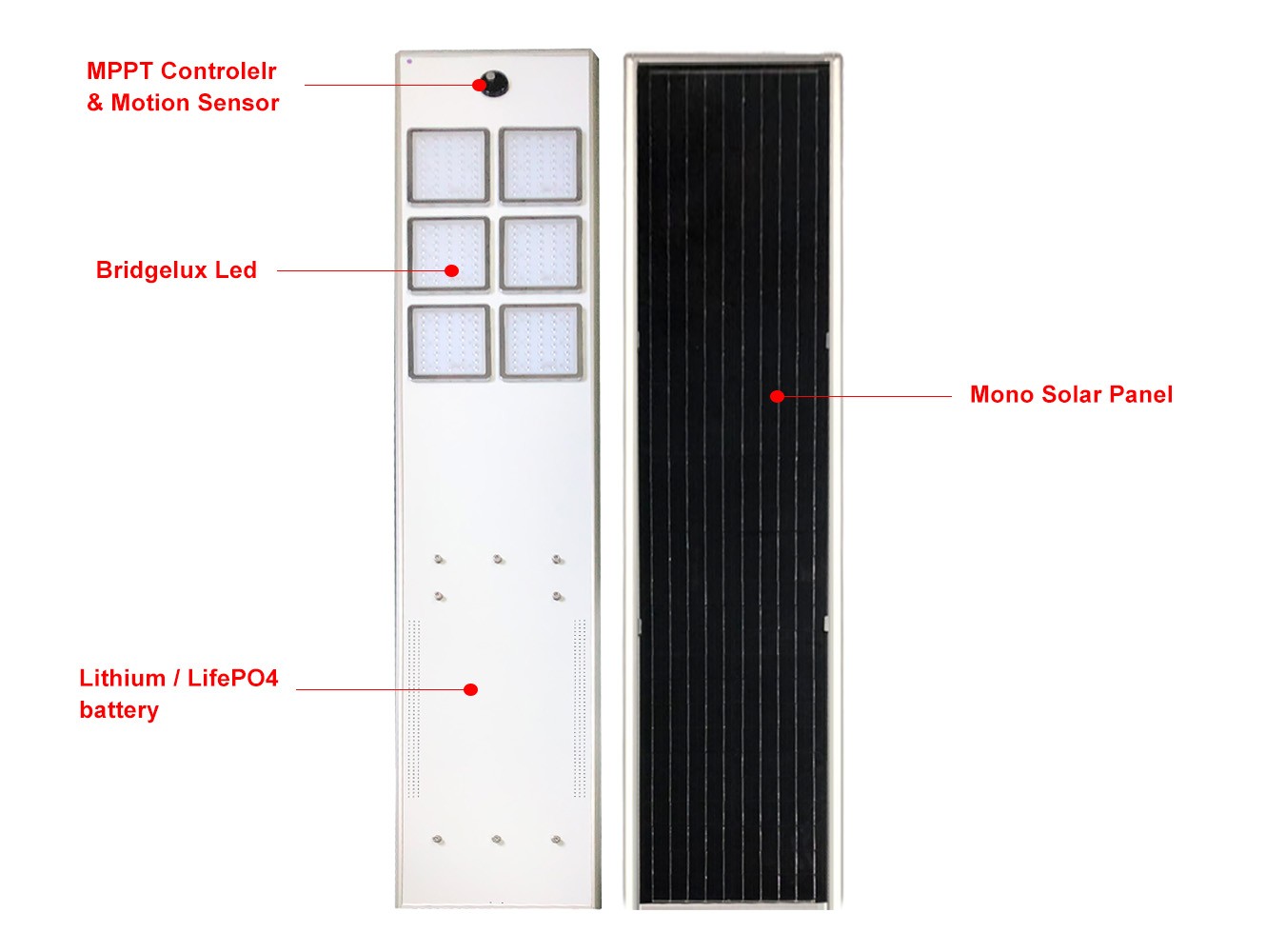

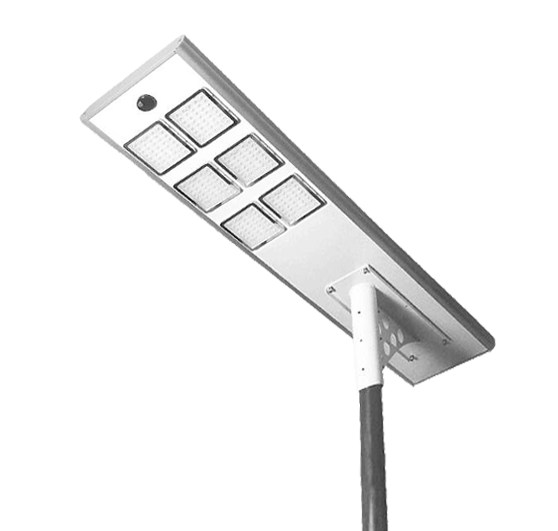

all in one solar street light KM model 100w

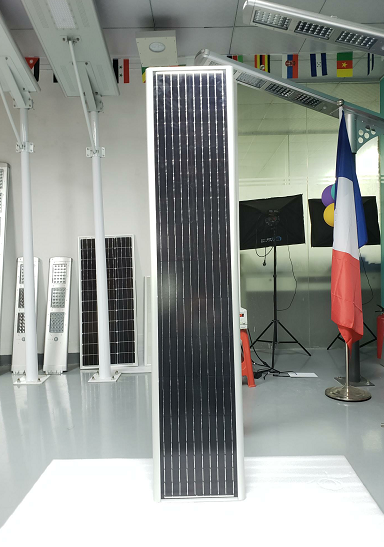

Solar panel

Max power

18V 120W(Imported High Efficiency Monocrystalline Silicon)

size

1810*331*4.5MM

Life time

25years

Battery

Type

LifePO4 Battery(12.8V 54AH)

size

290*308*36MM

Life time

5-8years

LED Lamp

Max power

100W

led chip brand

Bridgelux 3030  / lumileds3030

LED Efficacy

166LM/W

System Efficacy

106 LM/W

lumen (LM)

10600LM

Life time

100000hours

Viewing Angle

 TYPE 2

LED Lamp

240PCS

Charge time

by sun

6hours

Discharge time

3 -7Cloudy/Rainy days

working Temperature

range( ℃ )

-25℃—+65℃

colour temperature

range(k)

2700K-6500K(customized)

mounting height

range (m)

7-10M

space between light

range (m)

25-33M

Lamps material of main

aluminium alloy

with remote control or not

yes / Night Sensor+Microwave Motion  Sensor

Certificate

CE / ROHS / IP65 / ISO

warranty period

5years

Packing & Weight

Product size

1830*385*60MM/585*125*320MM

Net weight

Lamp :25.5KG  /  Bracket:3.5KG

Gross weight

Lamp :27KG  /  Bracket:4.5KG

Packing size

Lamp :1910*470*120MM  / Bracket:620*210*320MM

Qty/ctn

1set/ctn

Packing

neutral

Packs Containers

20GP

200sets

40GP

410sets

40HC

480sets
