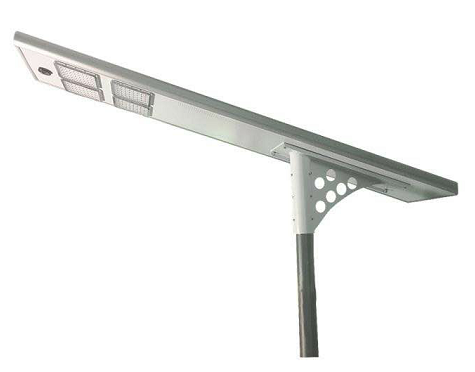

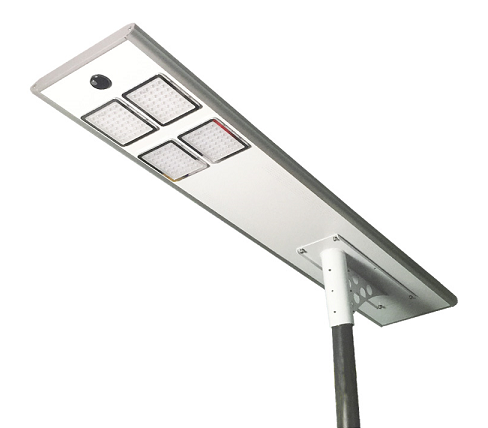

all in one solar street light KM model 80w

Power: 80w
Solar panel:18V 100W
Lithium battery:12.8V 45AH
Install height: 6m-9m
Material: Aluminum Alloy
Size: 1530*360*50MM

EMAIL

integrated solar street light

Item NO.JKC-KM-80W-motion sensor

Solar panel

Max power

18V 100W(Imported High Efficiency Monocrystalline Silicon)

size

1490*331*4.5MM

Life time

25years

Battery

Type

LifePO4 Battery(12.8V 576WH / 45AH)

size

290*208*36MM

Life time

5-8years

LED Lamp

Max power

80W

led chip brand

Bridgelux 3030  / lumileds3030

LED Efficacy

166LM/W

System Efficacy

106 LM/W

lumen (LM)

8480LM

Life time

100000hours

Viewing Angle

 TYPE 2

LED Lamp

160PCS

Charge time

by sun

6hours

Discharge time

3 -7Cloudy/Rainy days

working Temperature

range(  )

-25—+65

colour temperature

range(k)

2700K-6500K(customized)

mounting height

range (m)

6-9M

space between light

range (m)

20-28M

Lamps material of main

aluminium alloy

with remote control or not

yes / Night Sensor+Microwave Motion  Sensor

Certificate

CE / ROHS / IP65 / ISO

warranty period

5years

Packing & Weight

Product size

1530*360*50MM/585*125*320MM

Net weight

Lamp :23KG  /  Bracket:3.5KG

Gross weight

Lamp :24.5KG  /  Bracket:4.5KG

Packing size

Lamp:1730*560*120mm / Bracket:620*210*320mm

Qty/ctn

1set/ctn

Packing

neutral

Packs Containers

20GP

230sets

40GP

470sets

40HC

560sets
